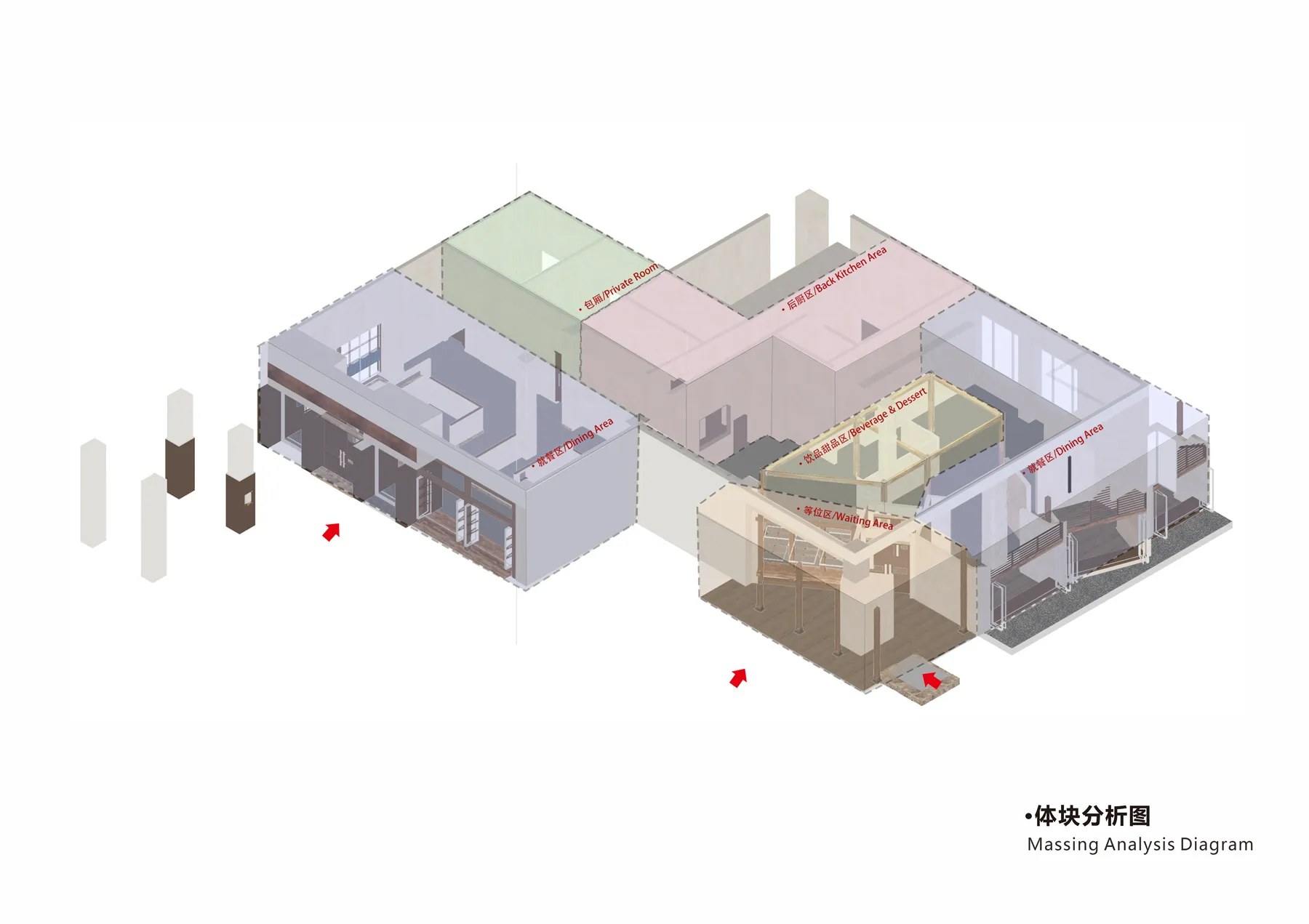

This architectural massing analysis diagram presents a contemporary restaurant design through a transparent, color-coded 3D volumetric study. The dominant palette consists of neutral concrete tones, warm wood browns, soft sage green for private rooms, and delicate blush pink for the back-of-house kitchen area. Different zones are clearly delineated: a front dining area with large glass openings, an elevated beverage and dessert counter with glass railings, a spacious main dining hall, private rooms at the rear, and distinct waiting and circulation spaces. The exploded axonometric view effectively communicates the spatial hierarchy and functional relationships between public, semi-private, and service areas. Natural light penetration is emphasized through generous glazing on multiple elevations. This type of diagram is particularly useful for restaurant owners, architects, and interior designers planning complex F&B establishments that require careful separation of guest experience zones and operational efficiency.
