Modern House Cross Sections with Double-Height Living Space

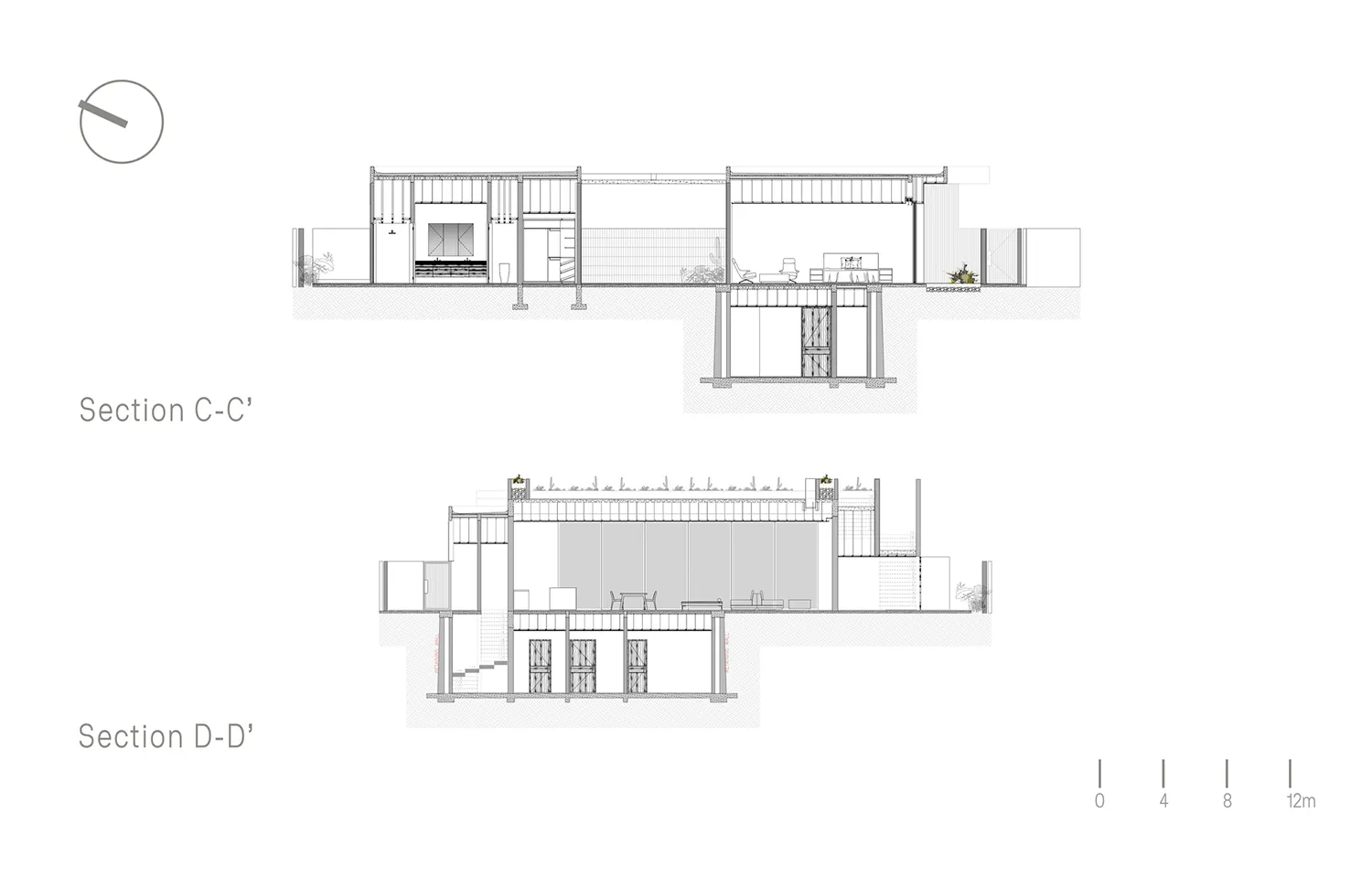

This architectural drawing presents two precise cross-sections (C-C’ and D-D’) of a contemporary residence. The dominant palette is monochromatic, utilizing clean black lines on white with subtle gray hatching to indicate ground and landscaping. Materials are expressed through a combination of exposed concrete, steel structural frames, and extensive glazing. The upper section reveals a dramatic double-height living area with a fireplace and open circulation, while the lower section showcases a more intimate dining and kitchen zone. Natural light floods through large glass walls and clerestory windows, creating a bright, airy mood. The spatial layout emphasizes vertical connectivity and visual transparency between floors. This design language suits design-conscious families or individuals who appreciate modernist architecture, open-plan living, and a strong connection between interior and exterior spaces.
